Installing Your Jetski Tracker

24 May 2021

** Work In Progress **

Documentation

Full Documentation
Quick Start

Cable Ties Provided

Ensure you tie the loom in with the provided cable ties. Keep wires and the tracker from hot engine parts and other electronics especially ignition leads. The tiny cable ties can be used to clip over the plug on the transmitter. Use electronic grease on the plugs if you have some to stop corrosion.

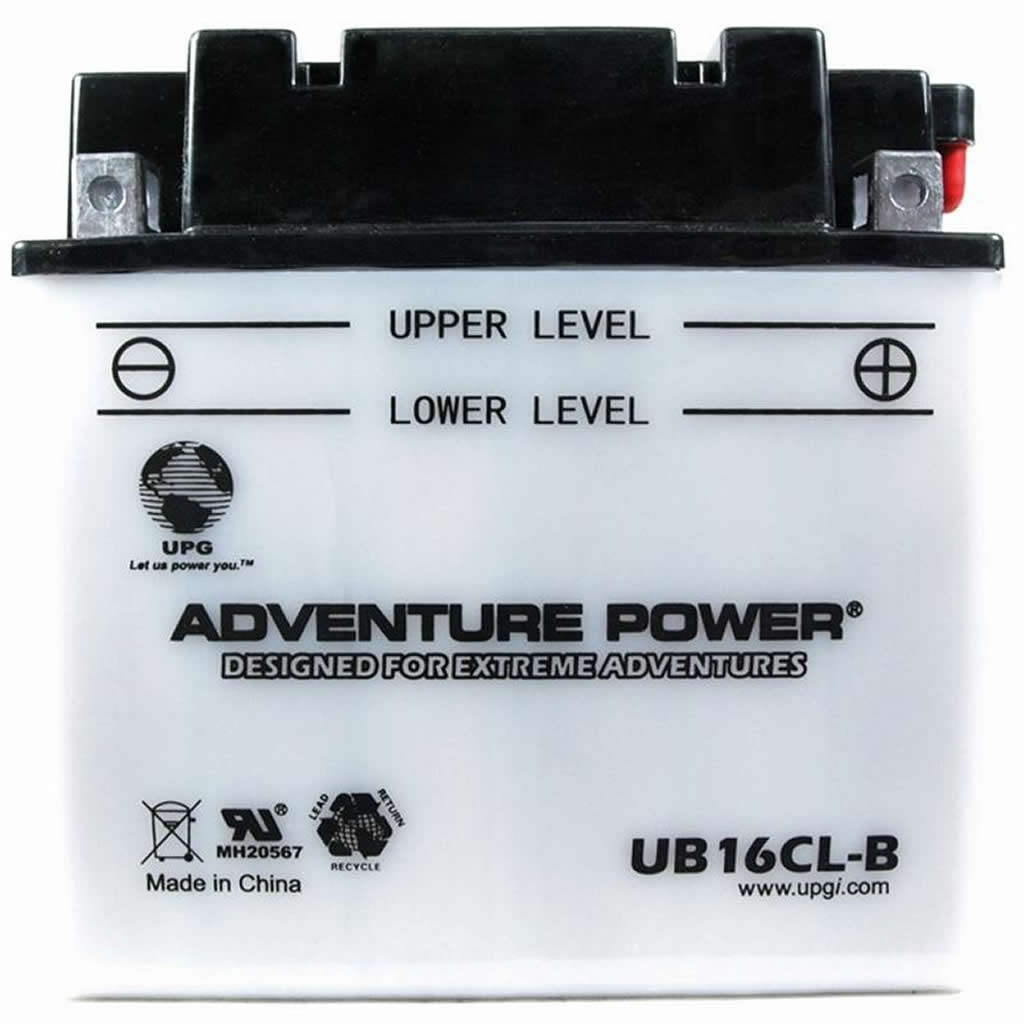

Battery (All Boats)

Simply attach the lugs to the battery. Check that you have the right polarity! RED on + and BLACK on -. Electronic devices draw current even when in standby so we recommend a battery maintainer if you do not use your Jet Ski weekly.

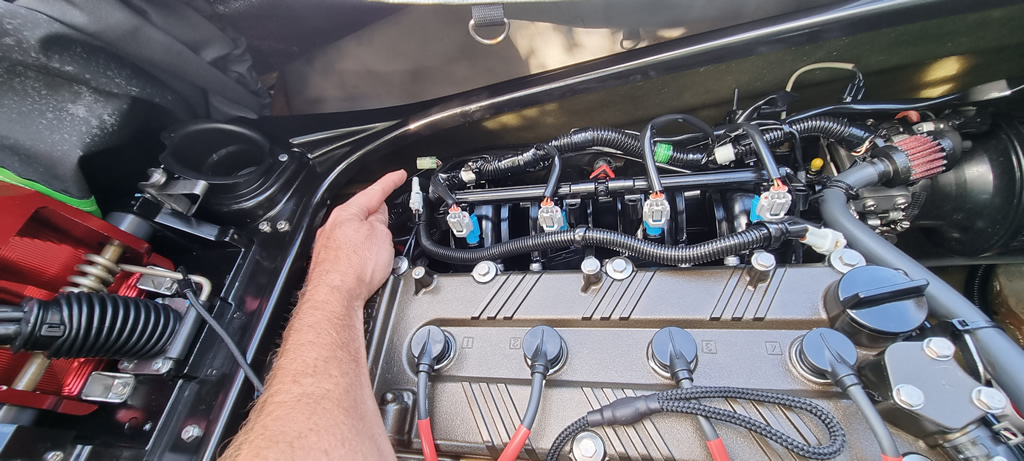

Kawasaki SXR 1500

The Kawasaki SXR 1500 has a plug used for scanning the computer. One pin on this plug is ACC. This pin has 12v when someone has your ski running. Simply remove the cap with a small screwdriver and plug in the harness. The SXR 1500 has a loop on the cap to ground a control pin. SXR 1500 has this loop also in the loom. The plug is top right when standing at the back of the ski. Battery is under the pole.

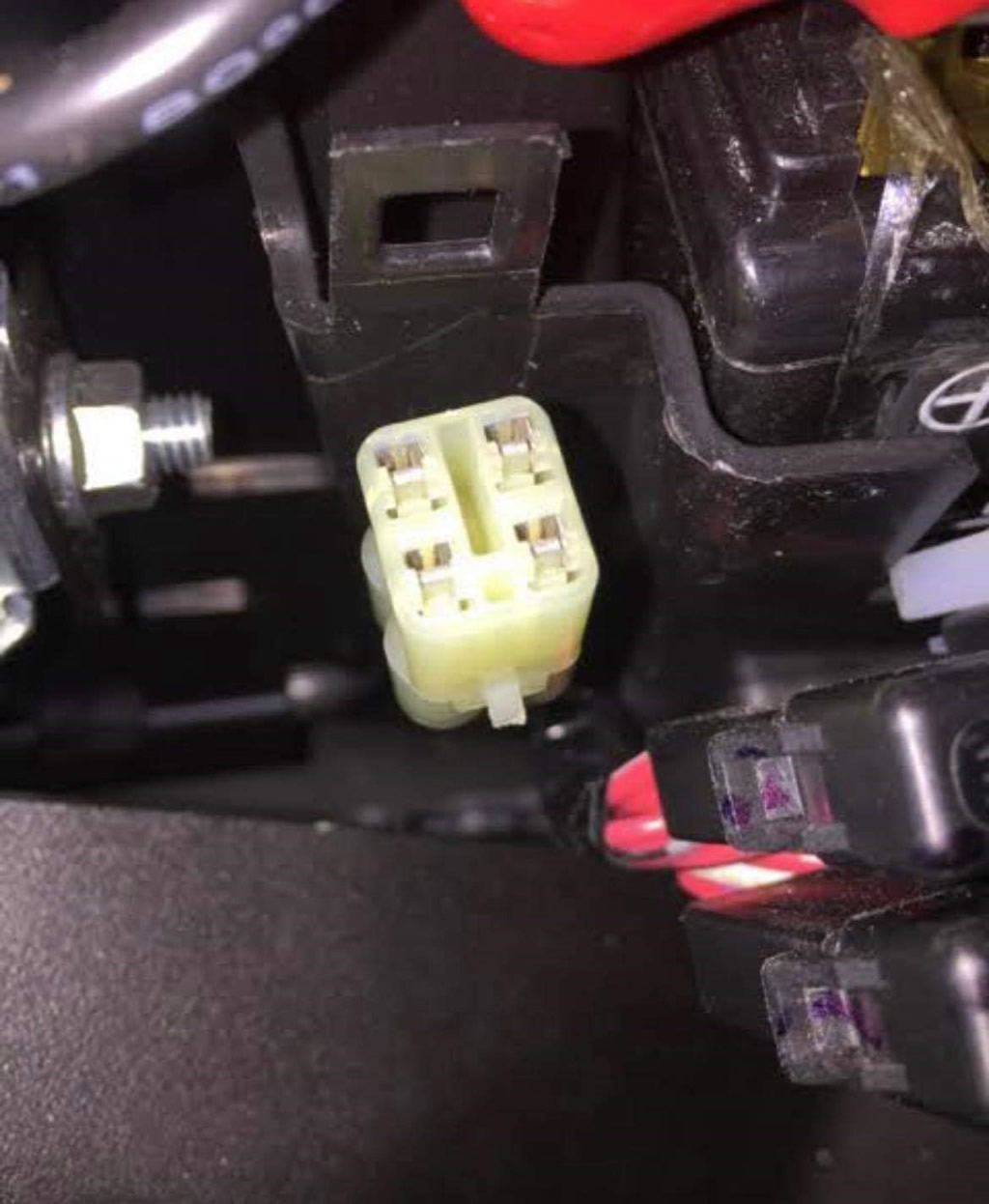

Ultra 310

The Kawasaki 310 (most Ultra models) has a plug used for scanning the computer. One pin on this plug is ACC. This pin has 12v when someone has your ski running. Simply remove the cap with a small screwdriver and plug in the harness. The plug is right next to the battery.

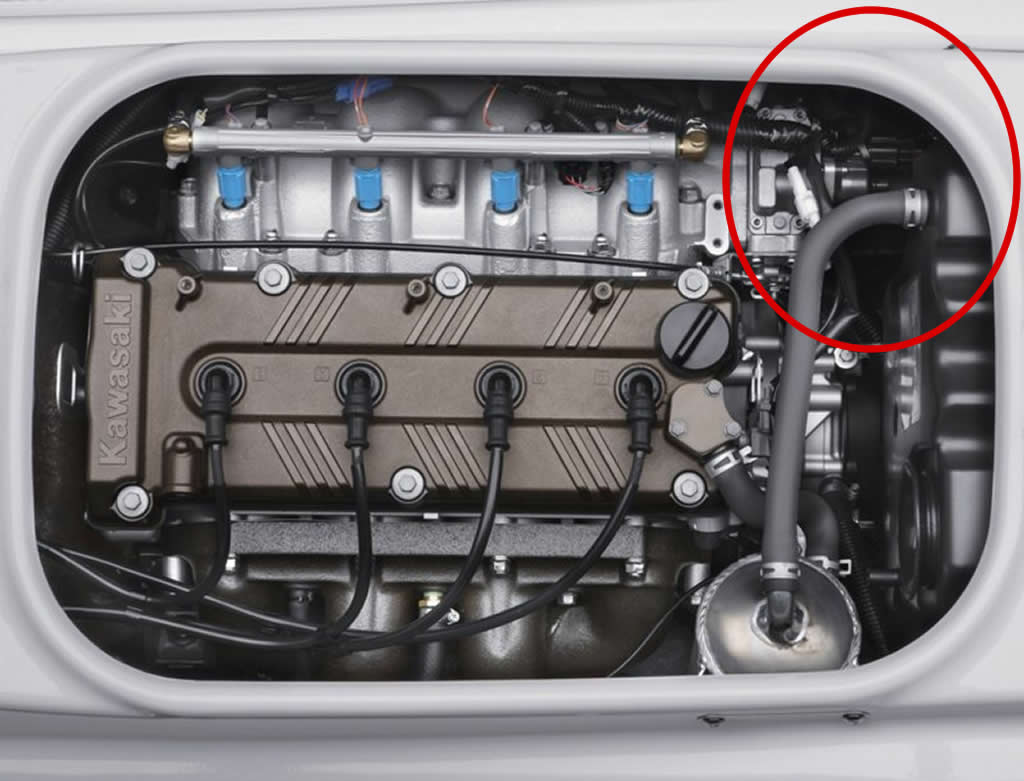

Kawasaki STX 15f

The Kawasaki STX-15f has a plug used for scanning the computer. One pin on this plug is ACC. This pin has 12v when someone has your ski running. Simply remove the cap with a small screwdriver and plug in the harness. The plug is on the right near the middle of the ski. The battery is in the back of the ski.
